INDUSTRIAL GAUGES

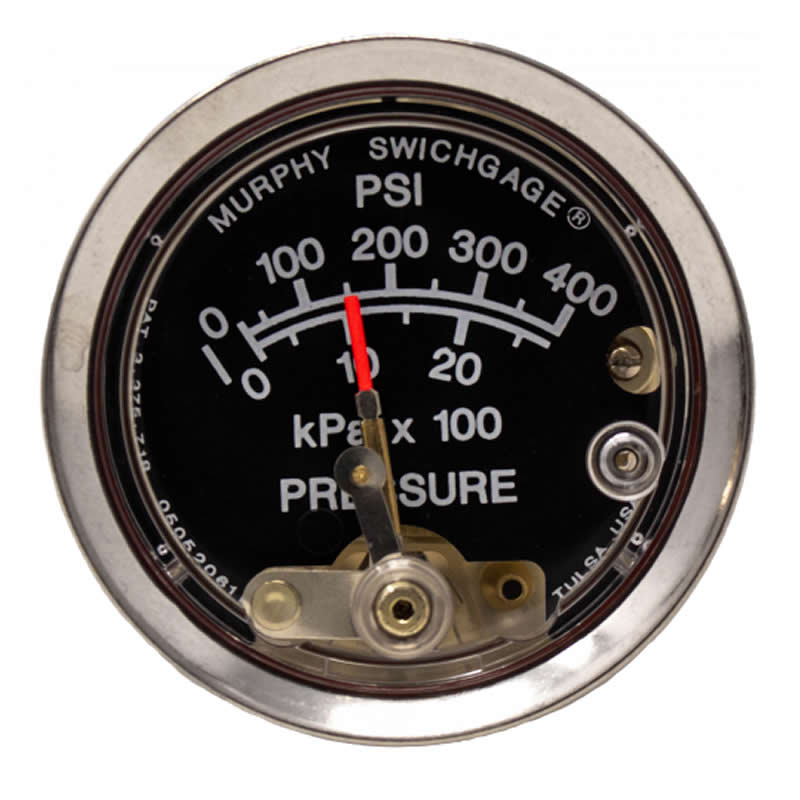

The gauge mechanism is enclosed in a steel case coated to resist corrosion. A polycarbonate, break-resistant lens and a polished, stainless steel bezel help protect this rugged, built-to-last instrument. Accuracy and protection from moderate overpressure is assured by a unique, unitized diaphragm chamber. A built-in pulsation dampener helps eliminate pointer flutter and is removable for cleaning. For models 20P and 25P, the gauge pointer acts as a pressure indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contacts are grounded through the case and have self-cleaning motion to ensure electrical continuity.

Suitable for all vehicles and machines
Available with 360° - minute hand sweep or as counters only.

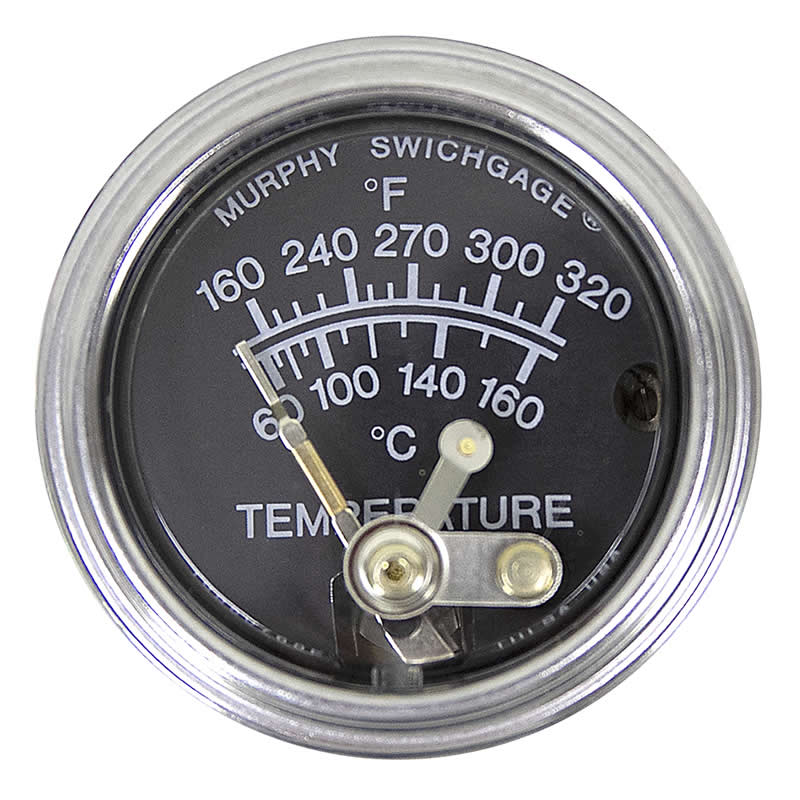

New MURPHY gauge model 10-35-0949 fluid temperature gauge with high limit switch. Can be used with coolant, oil, diesel fuel or hydraulic fluid. 1/16" Hex wrench adjustment knob on front to adjust switch set point.

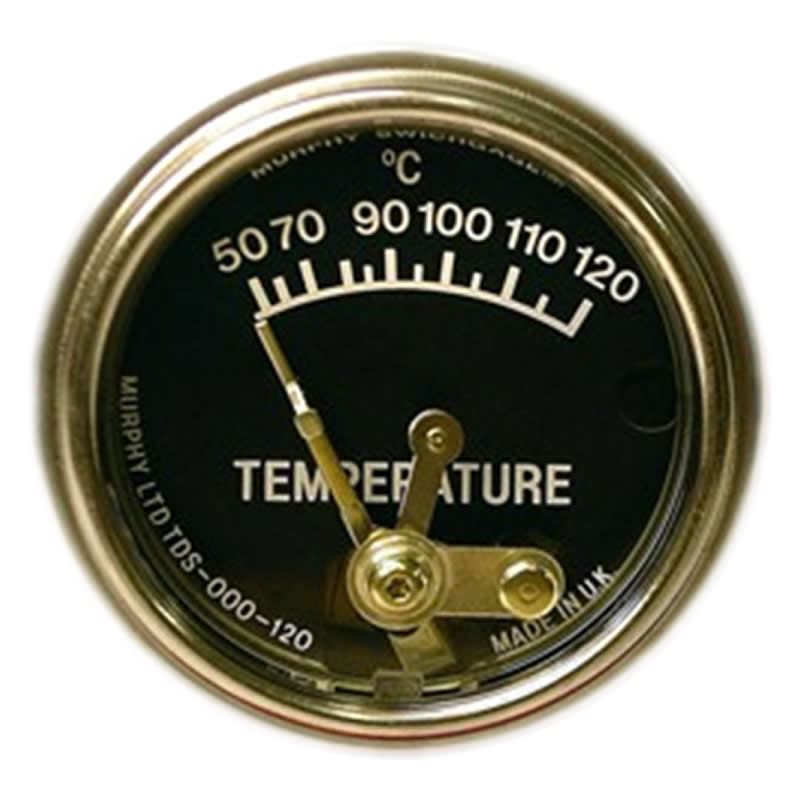

The 20 Series (2 inch/51 mm dial) and the 25 Series (2-1/2 inch/64 mm dial) Swichgauge models are diaphragm-actuated, temperature-indicating gauges with built-in electrical switches for tripping alarms and/or shut-down devices.
Ranges are available from 32°-120°F (0°-45°C) through 300°-440°F (160°-220°C).
The gauge mechanism is enclosed in a steel case coated to resist corrosion. A polycarbonate, break- resistant lens and a polished, stainless steel bezel help protect this rugged, built-to-last instrument.

These vapor-actuated gauges feature a sealed capillary tube and a sensing bulb. When subjected to heat, the liquid in the sensing bulb changes to vapor creating pressure against the diaphragm mechanism. The diaphragm translates this vapor pressure into a mechanical gauge reading. For series 20T and 25T, the gauge pointer acts as a temperature indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contact(s) are grounded through the Swichgauge case. They have a self-cleaning motion to enhance electrical continuity.
